APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
| AC outlet types | C13 coupler,C19 coupler |
| AC outlets quantity | 42 |
| Cable length | 1.83 m |
| Certification | cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC-15 A, UL, VCCI A |
| Colour of product | Black |
| Dimensions (WxDxH) | 56 x 51 x 1829 mm |
| Display | LCD |
| Input connection type | IEC 309 60A 3P+N+E |
| Input frequency | 50/60 Hz |
| Load capacity | 23000 VA |
| Maximum current | 40 A |
| Maximum input current per phase | 40 A |
| Maximum total current draw per phase | 32 A |
| Mounting | Yes |
| Nominal input voltage | 400 V |
| Nominal output voltage | 240 V |
| Non-operating altitude | 9144 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 8 - 35 °C |
| Output voltage | 240 V |
| Package dimensions (WxDxH) | 221 x 112 x 2149 mm |
| Package weight | 14050 g |
| Power protection features | Under voltage |
| Rack mounting | 0U |
| RoHS compliance | Yes |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -25 - 65 °C |
| Weight | 10100 g |

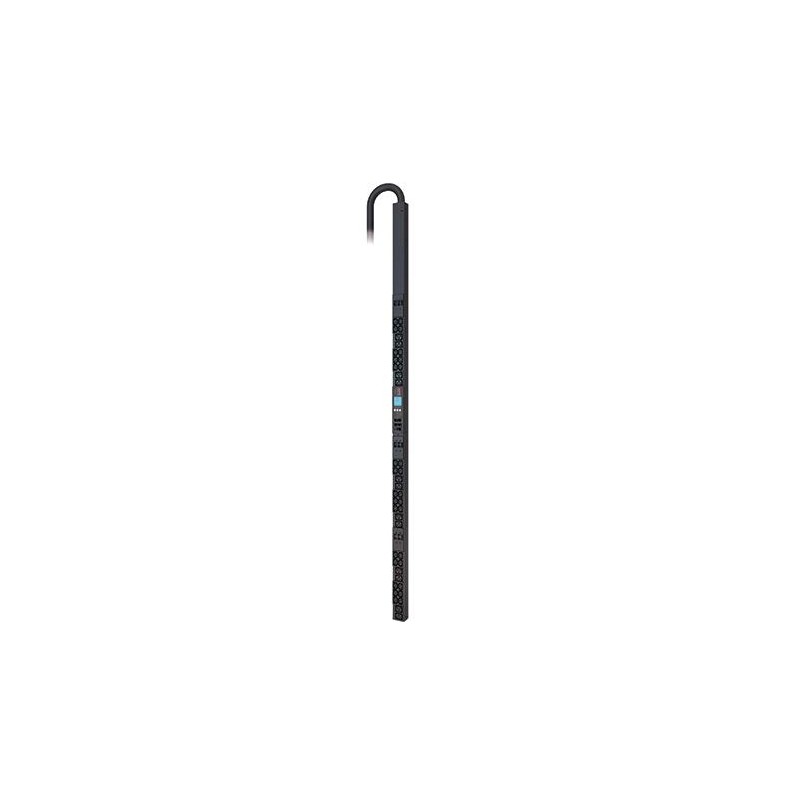

APC AP8888
PDU 2G, Metered, ZeroU, 23kW, 240V, 32A, 50/60Hz, 30xC13 & 12xC19, 10.1kg, Black
£2,272.73
£1,893.94 Ex. VAT
PDU 2G, Metered, ZeroU, 23kW, 240V, 32A, 50/60Hz, 30xC13 & 12xC19, 10.1kg, Black
