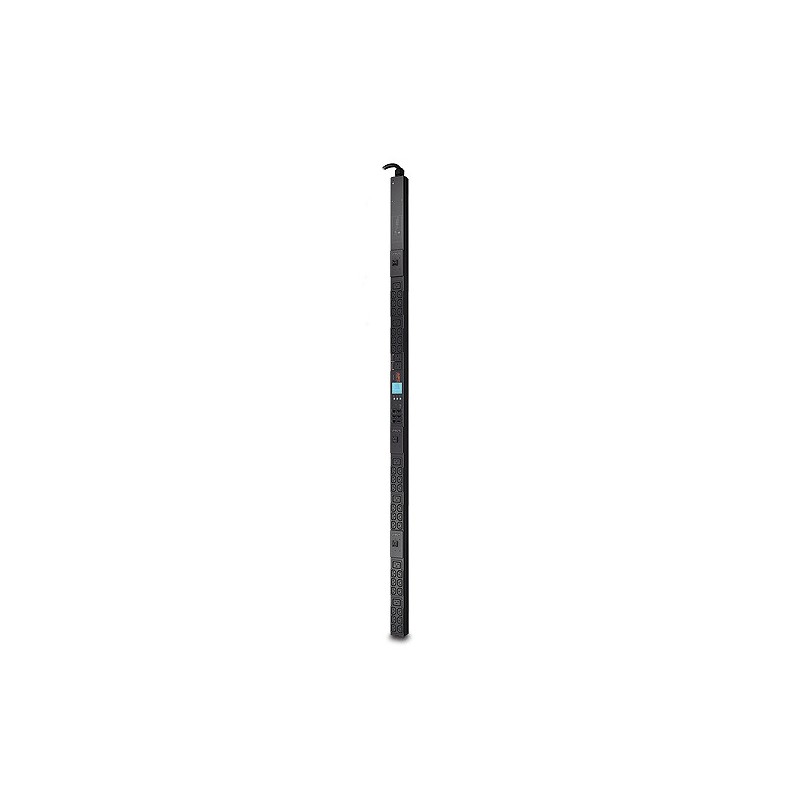

APC AP8865 power distribution unit PDU
Remote Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.



Local Current Monitoring Display

The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.



Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)



Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.



Integrates with InfraStruXure Central

An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network



Flash Upgradeable

Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Cable length1.83 m
CertificationCSA C22.2 No. 60950,UL 60950-1
Colour of productBlack
Dimensions (WxDxH)56 x 44 x 1791 mm
Input connection typeNEMA L21-30P
Input frequency50/60 Hz
Operating relative humidity range5 - 95 %
Operating temperature range (T-T)5 - 45 °C
Output connections36x IEC 320 C13 6x IEC 320 C19 2x NEMA 5-20R
Package dimensions (WxDxH)162 x 107 x 2000 mm
Storage relative humidity range5 - 95 %
Storage temperature range (T-T)-25 - 65 °C
Weight7.56 kg

Similar products

  • APC Service Bypass PDU
    APC Service Bypass PDU
  • APC Service Bypass PDU 230V 16AMP W/ (6) IEC C13 And (1) C19
    APC Service Bypass PDU 230V 16AMP W/ (6)...
  • APC In-Line Current Meter, 16A, 230V, IEC309-16A, 2P+G
    APC In-Line Current Meter, 16A, 230V,...
  • APC In-Line Current Meter
    APC In-Line Current Meter
  • APC SBPAR10K20H-WP
    APC SBPAR10K20H-WP

APC AP8865

Rack PDU 2G, Metered, ZeroU, 8.6kW, 208V, (36) C13 & (6) C19 & (2) 5-20

AP8865

Out of Stock

£1,432.44
£1,193.70 Ex VAT.
