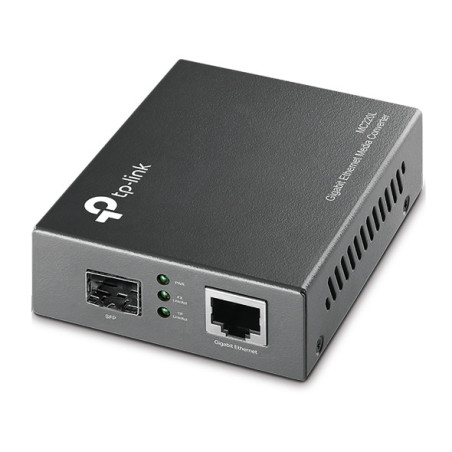

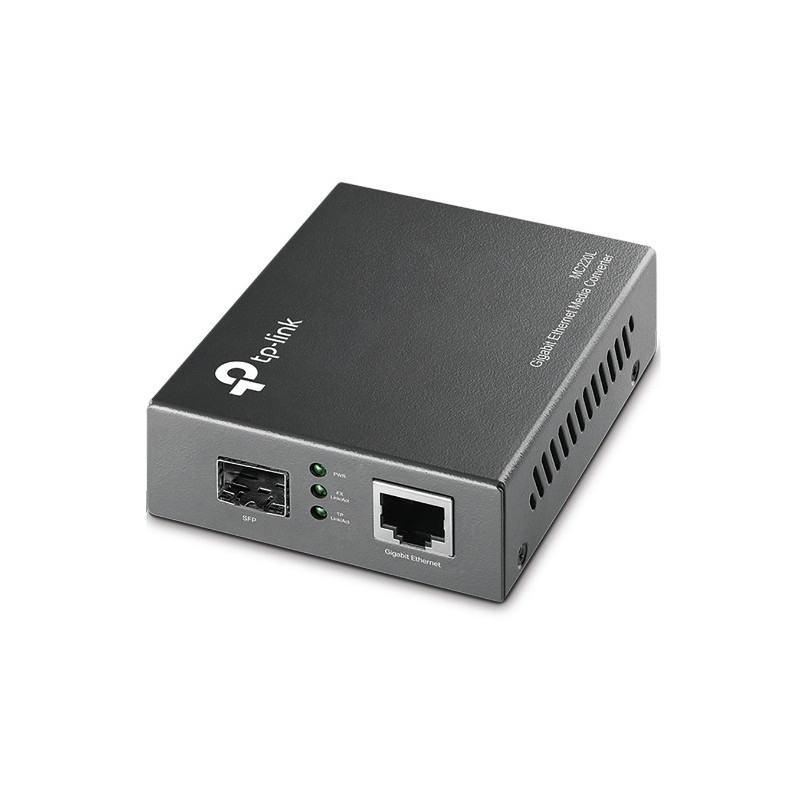

P-Link MC220L network media converter 1000 Mbit/s Multi-mode, Single-mode Black
  • P-Link MC220L network media converter 1000 Mbit/s Multi-mode, Single-mode Black
  • P-Link MC220L network media converter 1000 Mbit/s Multi-mode, Single-mode Black
  • P-Link MC220L network media converter 1000 Mbit/s Multi-mode, Single-mode Black
Reasons to Buy
  • 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3ab and IEEE 802.3z
  • FX port supports hot-swappable


Technical Headlines
  • Wired
  • 1000 Mbit/s 10000 m
  • Ethernet LAN (RJ-45) ports: 1
  • Multi-mode, Single-mode Fiber ports quantity: 1 SFP
  • Black


The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module*.
* TP-Link does not maintain a third party SFP module compatibility list and does not guarantee all SFP modules work with this product.
Auto MDI/MDI-X Yes
Cable types supported Cat5, Cat5e, Cat6
Connectivity technology Wired
Depth 73 mm
Duplex system Full, Half
Ethernet interface type Gigabit Ethernet
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s
Fiber mode structure Multi-mode, Single-mode
Fiber optic connector SFP
Fiber ports quantity 1
Height 27 mm
Internal No
LED indicators Yes
Maximum data transfer rate 1000 Mbit/s
Maximum transfer distance 10000 m
Networking standards IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Power consumption (max) 1.7 W
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Width 94 mm
Product colour Black
Harmonized System (HS) code 85176990
Compliance certificates RoHS

Specific References

EAN13
6935364030476

MC220L.pdf

TP-Link MC220L network media converter 1000 Mbit/s Multi-mode, Single-mode Black Data Sheet

TP-Link MC220L network media converter 1000 Mbit/s Multi-mode, Single-mode Black

TP-Link MC220L, 1000 Mbit/s, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s, Full, Half, Cat5, Cat5e, Cat6
In Stock
£22.03
£18.36 Ex. VAT
Reference: MC220L
Quantity
