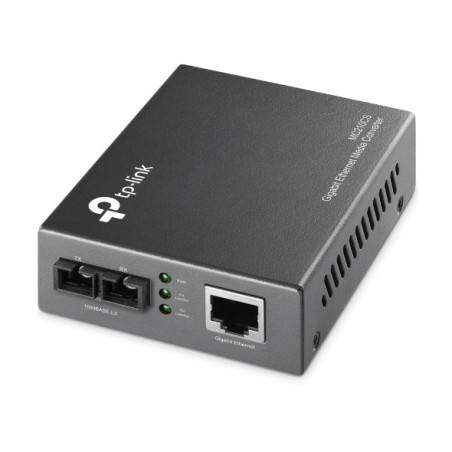

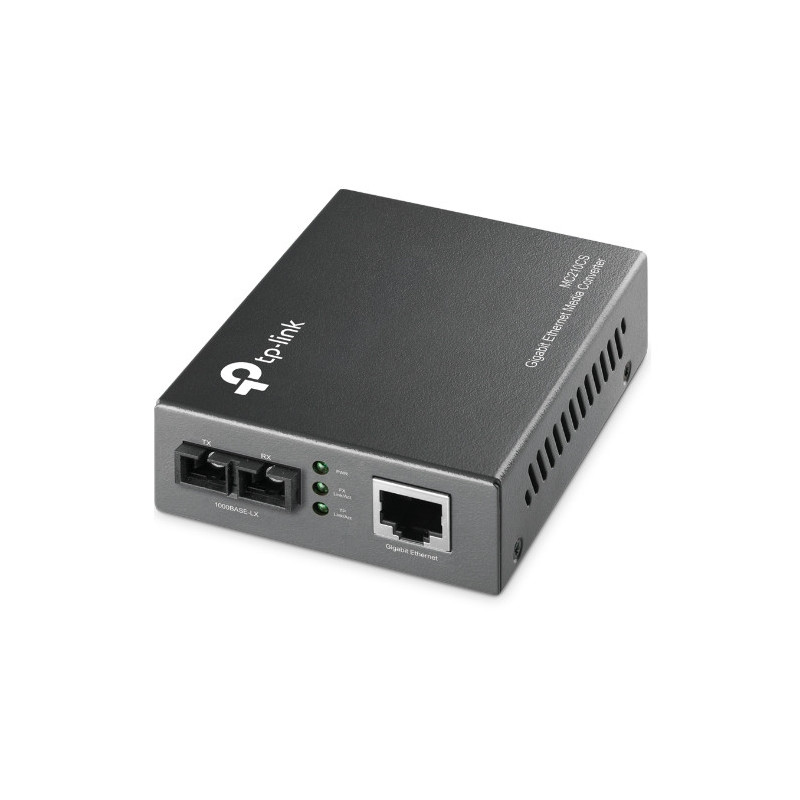

P-Link MC210CS network media converter 1000 Mbit/s 1310 nm Single-mode Black
  • P-Link MC210CS network media converter 1000 Mbit/s 1310 nm Single-mode Black
  • P-Link MC210CS network media converter 1000 Mbit/s 1310 nm Single-mode Black
  • P-Link MC210CS network media converter 1000 Mbit/s 1310 nm Single-mode Black
Reasons to Buy
  • 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
  • Complies with IEEE 802.3ab and IEEE 802.3z
  • Extends fiber distance up to 9.3 miles (15km)


Technical Headlines
  • Wired
  • 1000 Mbit/s 15000 m 1310 nm
  • 1000BASE-LX, 1000BASE-T
  • Ethernet LAN (RJ-45) ports: 1
  • Single-mode Fiber ports quantity: 1 SC
  • Black


The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 9.3 miles (15km).
Auto MDI/MDI-X Yes
Cable types supported Cat5, Cat5e
Connectivity technology Wired
Copper ethernet cabling technology 1000BASE-LX, 1000BASE-T
Depth 73 mm
Ethernet interface type Gigabit Ethernet
Ethernet LAN (RJ-45) ports 1
Fiber mode structure Single-mode
Fiber optic connector SC
Fiber ports quantity 1
Height 27 mm
Internal No
LED indicators Yes
Maximum data transfer rate 1000 Mbit/s
Maximum transfer distance 15000 m
Networking standards IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Power consumption (max) 1.8 W
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Wavelength 1310 nm
Width 95 mm
Product colour Black
Harmonized System (HS) code 85176990
Compliance certificates RoHS

Specific References

EAN13
0168141488559

MC210CS.pdf

TP-Link MC210CS network media converter 1000 Mbit/s 1310 nm Single-mode Black Data Sheet

TP-Link MC210CS network media converter 1000 Mbit/s 1310 nm Single-mode Black

TP-Link MC210CS, 1000 Mbit/s, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, Gigabit Ethernet, 1000BASE-LX, 1000BASE-T, Cat5, Cat5e, 15000 m
