AP6020AFeatures

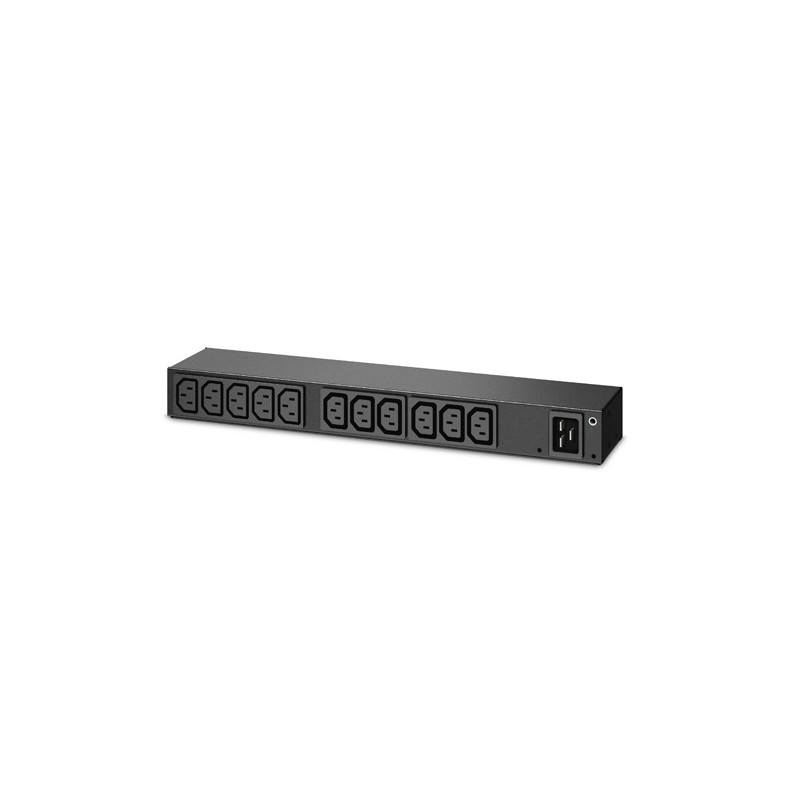

- Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13
- Reliable rack power distribution
- Includes : Installation guide , Safety guide
Marketing Features
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Agility
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Total Cost of Ownership
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
AC outlets quantity |
13 AC outlet(s) |
Certification |
cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH |
Colour of product |
Black |
Dimensions (WxDxH) |
44 x 93 x 388 mm |
Input frequency |
50/60 Hz |
Maximum current |
20 A |
Maximum total current draw per phase |
20 A |
Nominal input voltage |
100-240 V |
Operating altitude |
0 - 3048 m |
Operating relative humidity (H-H) |
5 - 95 % |
Operating temperature (T-T) |
0 - 50 °C |
Output connections |
IEC 320 C13 |
Package dimensions (WxDxH) |
210 x 76 x 436 mm |
Package weight |
2020 g |
PDU types |
Basic |
Rack mounting |
1U |
RoHS compliance |
Y |
Storage relative humidity (H-H) |
5 - 95 % |
Storage temperature (T-T) |
-15 - 60 °C |
Weight |
1500 g |
Specific References
- EAN13
- 0731304327806
