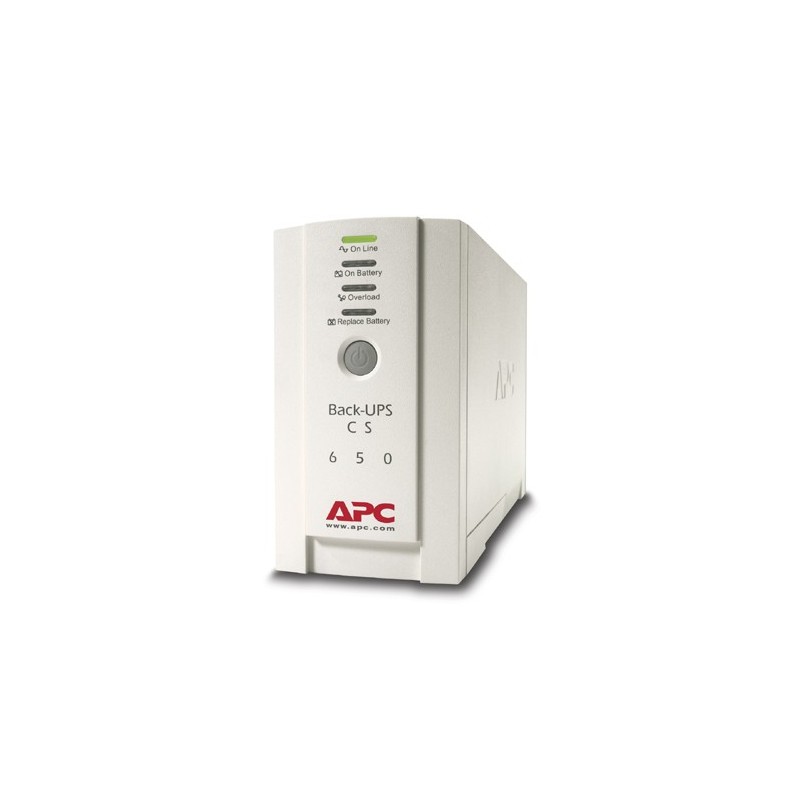

The re-invention of the most relied upon desktop UPS in history: the Back-UPS!

The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.

AC outlet types	C13 coupler
AC outlets quantity	4 AC outlet(s)
Automatic battery test	Yes
Battery capacity	95 VAh
Battery life (max)	6 year(s)
Battery recharge time	8 h
Battery technology	Sealed Lead Acid (VRLA)
Battery voltage	12 V
Bundled software	PowerChute Personal Edition
Cable length	2 m
Cables included	USB cable
Certification	A-tick, C-tick, CE, GOST, NEMKO
Colour of product	Beige
Depth	284 mm
Dimensions (WxDxH)	91 x 284 x 165 mm
Efficiency	98.9 %
Energy Star certified	Yes
Filtering	Yes
Form factor	Tower
Height	165 mm
Input connection type	IEC-320 C14
Input connections	IEC-320 C14
Input operation voltage (max)	286 V
Input operation voltage (min)	160 V
Interface	DB-9 RS-232, USB
LED indicators	Yes
Maximum current	7 A
Noise level	45 dB
Nominal input voltage	230 V
Nominal output voltage	230 V
Non-operating altitude	0 - 15000 m
Number of output IEC jumpers	2
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	5 - 95 %
Operating relative humidity range	5 - 95 %
Operating temperature (T-T)	0 - 40 °C
Operating temperature range (T-T)	0 - 40 °C
Output connections	1 x IEC 320 C13 3 x IEC 320 C13
Output frequency regulation	47 - 63 Hz
Output power	400 W
Output power capacity (VA)	650 VA
Package depth	415 mm
Package dimensions (WxDxH)	185 x 415 x 494 mm
Package height	494 mm
Package weight	7310 g
Package width	185 mm
Packaging content
Power supply input frequency	50/60 Hz
Quantity per pallet	48 pc(s)
Quick installation guide	Yes
Replacement battery cartridge	RBC17
RoHS compliance	Yes
Source data-sheet	Icecat.biz
Storage relative humidity (H-H)	5 - 95 %
Storage relative humidity range	5 - 95 %
Storage temperature (T-T)	-15 - 45 °C
Storage temperature range (T-T)	-15 - 45 °C
Surge energy rating	310 J
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL),Fax,Modem,Telephone
Typical backup time at full load	4.7 min
Typical backup time at half load	14.7 min
USB port	Yes
Waveform	Sine
Weight	6030 g
Width	91 mm
Output power capacity	650 VA
UPS topology	Standby (Offline)
Audible alarm(s)	Yes
Quantity per master carton	1 pc(s)
Hold time (min)	6 ms
Hold time (max)	10 ms
Software CD	Yes
Audible alarm modes	Low battery alarm,Overload alarm
