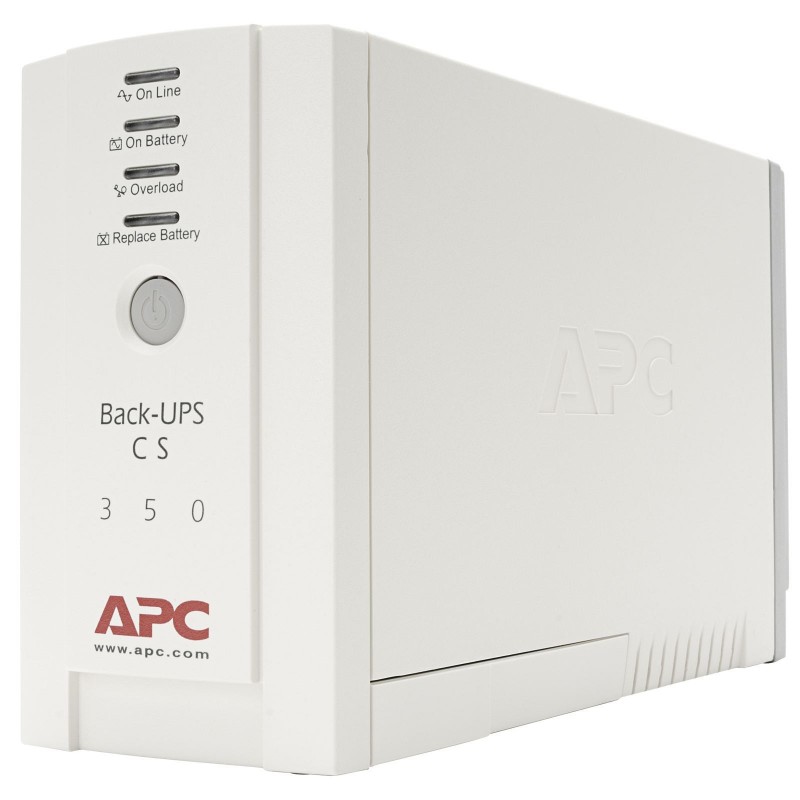

The re-invention of the most relied upon desktop UPS in history: the Back-UPS!
The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.
Key features:
- Audible alarms
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Battery replacement without tools
- Battery-protected and surge-only outlets
- Dataline Surge Protection
- Hot-swappable batteries
- LED status indicators
- Power conditioning
- Resettable circuit breakers
- Safety-agency approved
- Transformer-block spaced outlets
- User-replaceable batteries
The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.
Key features:
- Audible alarms
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Battery replacement without tools
- Battery-protected and surge-only outlets
- Dataline Surge Protection
- Hot-swappable batteries
- LED status indicators
- Power conditioning
- Resettable circuit breakers
- Safety-agency approved
- Transformer-block spaced outlets
- User-replaceable batteries
| AC outlet types | C13 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| Automatic battery test | Yes |
| Battery capacity | 116 VAh |
| Battery life (max) | 6 year(s) |
| Battery recharge time | 6 h |
| Battery replacement alarms | LED |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 12 V |
| Bundled software | PowerChute Personal Edition |
| Cable length | 1.83 m |
| Cables included | Phone (RJ-11),USB cable |
| Certification | C-tick, CE, EN 50091-1, EN 50091-2,GOST, VDE, PEP, EOLI |
| Colour of product | Beige |
| Depth | 284 mm |
| Dimensions (WxDxH) | 91 x 284 x 165 mm |
| Efficiency | 98.6 % |
| Energy Star certified | Yes |
| Filtering | Yes |
| Form factor | Tower |
| Height | 165 mm |
| I/O ports | DB-9 RS-232 USB |
| Input connection type | IEC-320-C14 |
| Input connections | IEC-320-C14 |
| Interface | USB |
| LED indicators | Yes |
| Maximum current | 7 A |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Non-operating altitude | 0 - 15000 m |
| Number of output IEC jumpers | 2 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating relative humidity range | 0 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature range (T-T) | 0 - 40 °C |
| Output connections | (1) IEC 320 C13 (3) IEC 320 C13 (2) IEC Jumpers |
| Output frequency regulation | 47 - 63 Hz |
| Output power | 210 W |
| Output power capacity (VA) | 350 VA |
| Package depth | 368 mm |
| Package dimensions (WxDxH) | 241 x 368 x 178 mm |
| Package height | 178 mm |
| Package weight | 7050 g |
| Package width | 241 mm |
| Power protection features | Overload |
| Power supply input frequency | 50/60 Hz |
| Quantity per pallet | 48 pc(s) |
| Quick installation guide | Yes |
| Replacement battery cartridge | RBC2 |
| RoHS compliance | Yes |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage relative humidity range | 0 - 95 % |
| Storage temperature (T-T) | -15 - 45 °C |
| Storage temperature range (T-T) | -15 - 45 °C |
| Surge energy rating | 310 J |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL),Fax,Modem,Telephone |
| Typical backup time at full load | 8.6 min |
| Typical backup time at half load | 22.1 min |
| USB port | Yes |
| Warranty card | Yes |
| Weight | 6320 g |
| Width | 91 mm |
| Output power capacity | 350 VA |
| UPS topology | Standby (Offline) |
| Audible alarm(s) | Yes |
| Hold time (min) | 6 ms |
| Hold time (max) | 10 ms |
| Software CD | Yes |
| Audible alarm modes | Low battery alarm,Overload alarm |
Specific References
- EAN13
- 7313040163424
APC Back-UPS
Back-UPS CS, 350VA/210W, Input 230V/Output 230V, Interface Port DB-9 RS-232, USB
£116.56
Tax excluded
Back-UPS CS, 350VA/210W, Input 230V/Output 230V, Interface Port DB-9 RS-232, USB
