HomeActive NetworkingRoutersHP RoutersHewlett Packard Enterprise 8812 Router Chassis

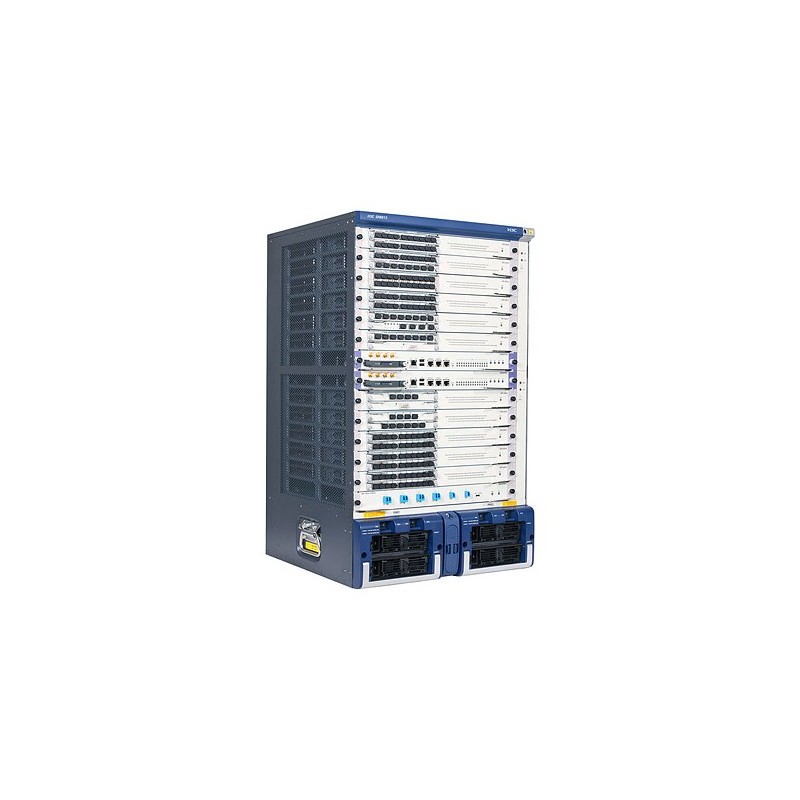

HP 8812 Router Chassis
High-end enterprise WAN routers that operate at the WAN edge and core layers of campus and data center locations, delivering carrier-class reliability as well as comprehensive WAN routing, switching, and security services.
Dimensions (WxDxH)442 x 450.1 x 753.1 mm
Electromagnetic compatibilityFCC Class A; FCC part 15 Class A; ICE-003, Canadian Radio Interface Regulation; EN 55022/CISPR-22 Class A; VCCI Class A; EN 55022/CISPR 22 Class A; EN 55022 Class A; CISPR 22; CISPR 22 Class A; EN 55022; EN 55024; CNS 13438 Class B; FCC CFR 47 Part 15; VC
Form factor17U height
Heat dissipation11935 BTU/h
I/O ports12 I/O module slots; 2 MPU (for management modules) slots
Input frequency50 / 60 Hz
Input voltage100-120 / 200-240 VAC
MAC address table3000000 entries
Management platformIMC - Intelligent Management Center; command-line interface; limited command-line interface; configuration menu; out-of-band management (serial RS-232C); out-of-band management; SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; terminal interface
MountingEIA standard 19 in. rack
Operating temperature range (T-T)0 - 45 °C
SafetyCSA 22.2 No. 60950; cUL (CSA 22.2 No. 60950); CSA 22.2 No. 60950 3rd edition; CSA 22.2 No. 950; CSA 950; cUL (CSA 950); EN 60950/IEC 60950; UL 1950 3rd edition; UL 1950; UL 60950; UL 60950-1; CAN/CSA 22.2 No. 60950; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950;
Storage relative humidity range5 to 95 %
Storage temperature range (T-T)-40 - 70 °C
Switching capacity1.4 Tbps
Throughputup to 864 million pps
Weight120 g
