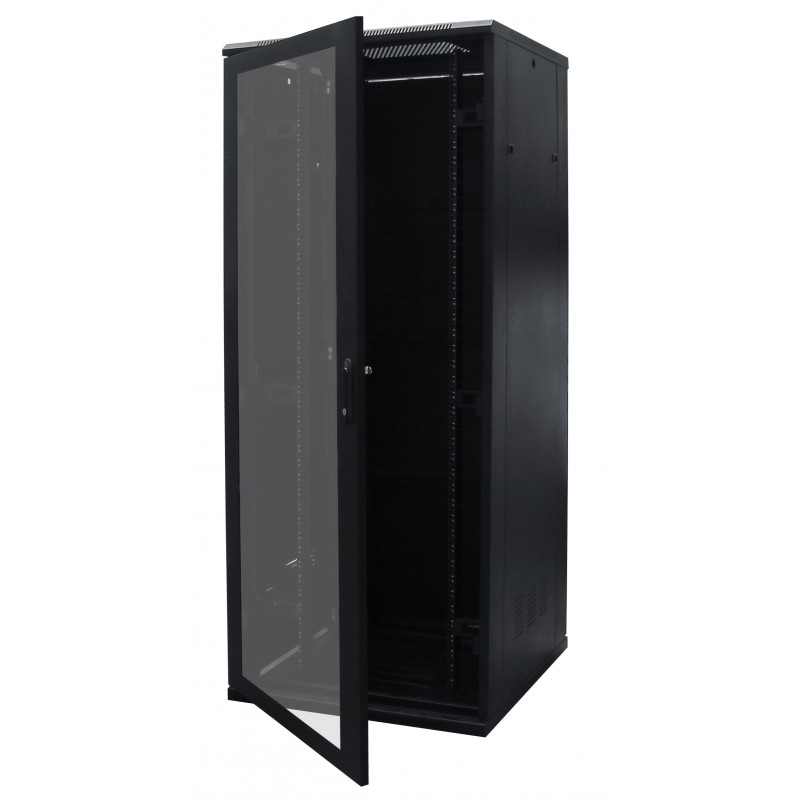

RackyRax 800mm x 800mm Data Cabinet Rear Open

RackyRax 19” Data Cabinets combine all the features of a premium data cabinet including the aesthetically pleasing design, without the price-point to match.

The Data Cabinets are available in various configurations and are supplied fully assembled. Each cabinet utilises a ventilated top and four 19” adjustable front and rear mounting posts. The cabinets feature lift-off sides and a lockable door for maximum access to the internal equipment, with cable access in the base for convenient routing of network cables. The side panels can be fitted with cabinet locks. The cabinet frameworks are finished in black with a toughened glass lockable front door

Each Cabinet is assembled in the UK using the highest quality components and boast an impressive load rating of up to 800kg (evenly distributed). The RackyRax range of Data Cabinets has been designed ensure easy installation and maintenance

Cable access can be made through removable gland plates in the roof or through the open base.

Each RackyRax Cabinet is supplied fully assembled and ready to go

If you wish to include the Cable tray in wit hte cabinet thsi is the product you will receive RR-CT

Features:

  • 800kg loading capacity (evenly distributed)
  • Lockable/removable toughened glass front door with steel surround
  • Lockable/removable steel rear door
  • Removable steel side panels
  • Adjustable 19” mounting profiles front and rear
  • Optional roof mounted fan
  • Removable gland plates top and bottom for cable access



A full range of accessories are available to complement the cabinet including castors, shelves and vertical cable trays


Dimensions By U Height

U HeightSize (HxWxD)Weight
18U902x800x800 mm42.3 kg
21U1035x800x800 mm49.3 kg
24U1168x800x800 mm56.4 Kg
27U1302x800x800 mm63.4 Kg
39U1835x800x800 mm91.6 Kg
42U1968x800x800 mm98.8 Kg
45U2103x800x800 mm105.7 Kg
Cable EntryTop & Bottom
Depth800mm
Internal Working Depth680mm
Mounting Profiles19" Adjustable Front & Rear
Side PanelsRemovable
Width800mm
