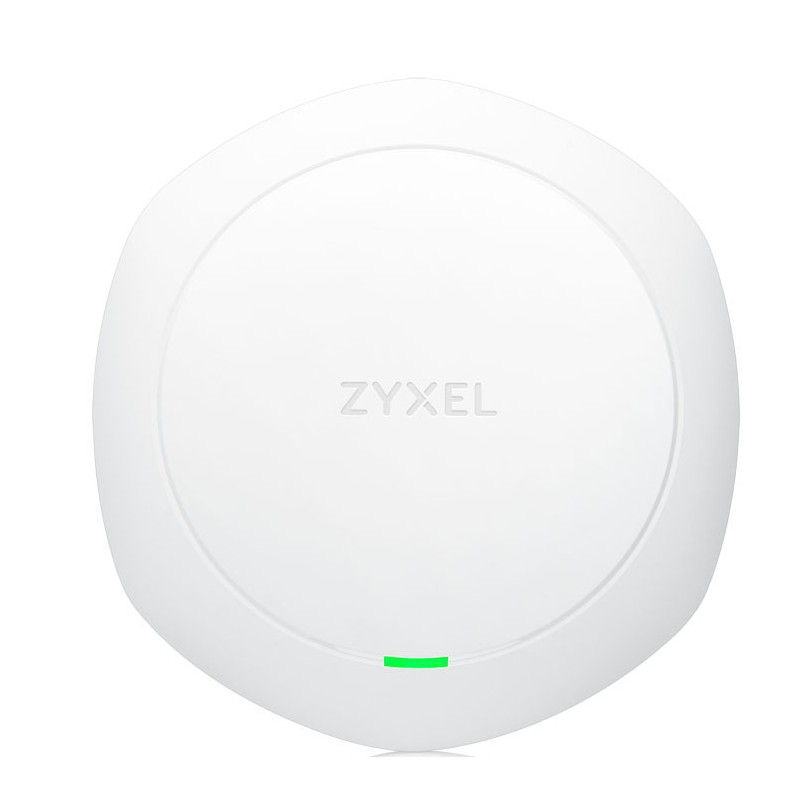

ZyXEL NWA5123 AC HD
  • ZyXEL NWA5123 AC HD
  • ZyXEL NWA5123 AC HD
  • ZyXEL NWA5123 AC HD
  • ZyXEL NWA5123 AC HD
  • ZyXEL NWA5123 AC HD
  • ZyXEL NWA5123 AC HD
The Zyxel NWA5123-AC HD is a Wave 2 dual-radio 3x3 MU-MIMO Unified Access Point with a combined data rate of up to 1.6Gbps. Thanks to its superior hardware design with next generation beamforming technology and advanced noise suppression, the NWA5123-AC HD delivers increased coverage and improved connection speeds for every client. The high-performance NWA5123-AC HD is future-proof for the ever-growing mobility demands in high-density environments such as campuses and hotels.



MU-MIMO, New Definition of Wi-Fi

Stepping up from 802.11ac, the second generation Wave 2 technology introduces Multi-User MIMO (MU-MIMO). This is an important WiFi development that enables an AP to communicate with multiple clients at a time offering 300% performance for a 3x3 AP.



Next Generation Transmit Beamforming benefits overall networking

Transmit Beamforming (TxBF) technology is another key to implement reliable high-density Wi-Fi connection. It increases overall network transmission data rates, which benefits not only MU-MIMO clients but also all existing clients.



Built for Superior performance

The NWA5123-AC HD is built with a high-efficiency antenna module, premium power amplifiers and low-noise elements delivering superior wireless performance over other Wave 2 access points on the market.



Optimized wireless experience with advanced features

To provide outstanding performance in crowded environment, NWA5123-AC HD features 3G/4G interference immunity, excellent receive sensitivity and DCS, which enlarge its service coverage for more clients and better quality of connection.



Unified access point- Fits all businesses

Stay standalone mode if you’re a start-up, needing just few APs; convert to controller-managed mode when business grows up, requiring hundreds of APs.
AC adapter includedY
Cable lock slotKensington
Colour of productWhite
Data transfer rate (max)1300 Mbit/s
DC-in jackY
Depth223 mm
DHCP clientY
Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
Height39 mm
Input frequency50/60 Hz
Input voltage100 - 240 V
InternalN
Modulation16-QAM,64-QAM,256-QAM,BPSK,CCK,DBPSK
Mounting kitY
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)-20 - 60 °C
Output current2 A
Output voltage12 V
Package depth247 mm
Package height55 mm
Package weight990 g
Package width251 mm
PlacementCeiling,Wall
Power over Ethernet (PoE)Yes
Quality of Service (QoS) supportY
Security algorithms802.1x RADIUS,EAP,LEAP,WPA,WPA-Enterprise,WPA-PSK,WPA2,WPA2-Enterprise,WPA2-PSK
Storage relative humidity (H-H)10 - 90 %
Storage temperature (T-T)-20 - 70 °C
Throughput1600 Mbps
VLAN supportY
Weight750 g
Width211 mm
2.4 GHzY
5 GHzY
Number of SSID support16
RS-232 interfaceY
