Tripp Lite 2-Port DisplayPort 1.2 Multi-Stream Transport (MST) Hub, 3840 x 2160 (4K x 2K) UHD, TAA
  • Tripp Lite 2-Port DisplayPort 1.2 Multi-Stream Transport (MST) Hub, 3840 x 2160 (4K x 2K) UHD, TAA
  • Tripp Lite 2-Port DisplayPort 1.2 Multi-Stream Transport (MST) Hub, 3840 x 2160 (4K x 2K) UHD, TAA
  • Tripp Lite 2-Port DisplayPort 1.2 Multi-Stream Transport (MST) Hub, 3840 x 2160 (4K x 2K) UHD, TAA
  • Tripp Lite 2-Port DisplayPort 1.2 Multi-Stream Transport (MST) Hub, 3840 x 2160 (4K x 2K) UHD, TAA
  • Tripp Lite 2-Port DisplayPort 1.2 Multi-Stream Transport (MST) Hub, 3840 x 2160 (4K x 2K) UHD, TAA
  • Tripp Lite 2-Port DisplayPort 1.2 Multi-Stream Transport (MST) Hub, 3840 x 2160 (4K x 2K) UHD, TAA
  • Tripp Lite 2-Port DisplayPort 1.2 Multi-Stream Transport (MST) Hub, 3840 x 2160 (4K x 2K) UHD, TAA
  • Tripp Lite 2-Port DisplayPort 1.2 Multi-Stream Transport (MST) Hub, 3840 x 2160 (4K x 2K) UHD, TAA

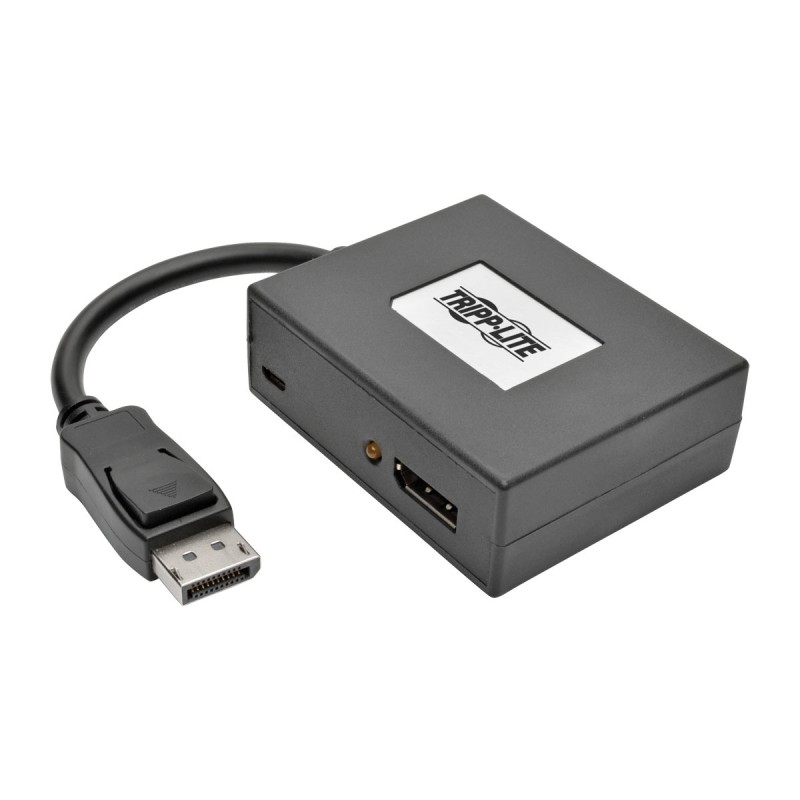

The B156-002-V2 2-Port DisplayPort 1.2 MST Hub connects two DisplayPort monitors to the DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on both monitors, extend the desktop across them, or combine both into one large monitor in video wall mode.



The B156-002-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 24/30 Hz. This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio.



The B156-002-V2 works with all operating systems. Plug-and-play convenience means no software, drivers or external power supply is needed. The included 0.91 m USB Micro-B cable delivers necessary power from the connected computer. A built-in 15.24 cm cable connects directly to a DisplayPort source. LEDs indicate when the monitors are receiving a signal.



Connects 2 DisplayPort Monitors to Your Computer’s DisplayPort Output



● Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings

● Displays same image on 2 monitors simultaneously in mirror mode

● Extends desktop across 2 monitors in extended mode

● Combines 2 monitors into one large monitor in video wall mode

● Built-in 6 in. cable connects directly to DisplayPort source

● LEDs indicate when monitors are receiving a signal



Meets the Latest Performance Standards



● Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 24/30 Hz

● Supports HDCP, EDID and DDC

● Supports 48-bit Deep Color (16 bits per channel)

● Supports DTS-HD, Dolby True HD and 7.1-channel surround sound audio

● Backward compatible with DisplayPort 1.1 and 1.1a



Easy to Use Almost Anywhere



● Works with all operating systems

● Plug and play—no software, drivers or external power supply required

● Bus-powered via included USB Micro-B cable



● Supports UHD video resolutions up to 3840 x 2160 (4K x 2K)

● Built-in 6 in. cable connects directly to DisplayPort source

● Supports up to 48-bit Deep Color (16 bits per channel)

● Works with all operating systems

● Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound



System Requirements



● Computer with DisplayPort 1.2-compatible graphics card (e.g. AMD Radeon with AMD Eyefinity) required for video wall mode

● Backward compatible with most DisplayPort 1.1a equipment running current graphics drivers with feature set limited to that of your equipment. Compatibility with older graphics cards not guaranteed.

● Mac OS X does not support MST for NVIDIA and Intel Graphics Processor Units, limiting video display on connected monitors to mirror mode.

● Maximum supported video resolutions and number of monitors depend on your graphics card. Check graphics card specifications to determine its capabilities.

● Monitor with DisplayPort input



Package Includes



● B156-002-V2 2-Port DisplayPort 1.2 MST Hub

● USB Micro-B cable, 0.91 m

● Owner’s manual



Batteries not Required to Operate
Cable length0.15 m
Cables includedmicro-USB
CertificationCE, FCC, RoHS, REACH
Colour depth48 bit
Colour of productBlack
Connector(s)DISPLAYPORT (MALE), (2) DISPLAYPORT (FEMALE)
Dimensions (WxDxH)76.2 x 25.4 x 61.5 mm
Dolby technologiesDTS-HD,Dolby TrueHD
Maximum resolution3840 x 2160 pixels
Video port typeDisplayPort
Video ports quantity2
Weight90 g
Supported audio channels7.1
