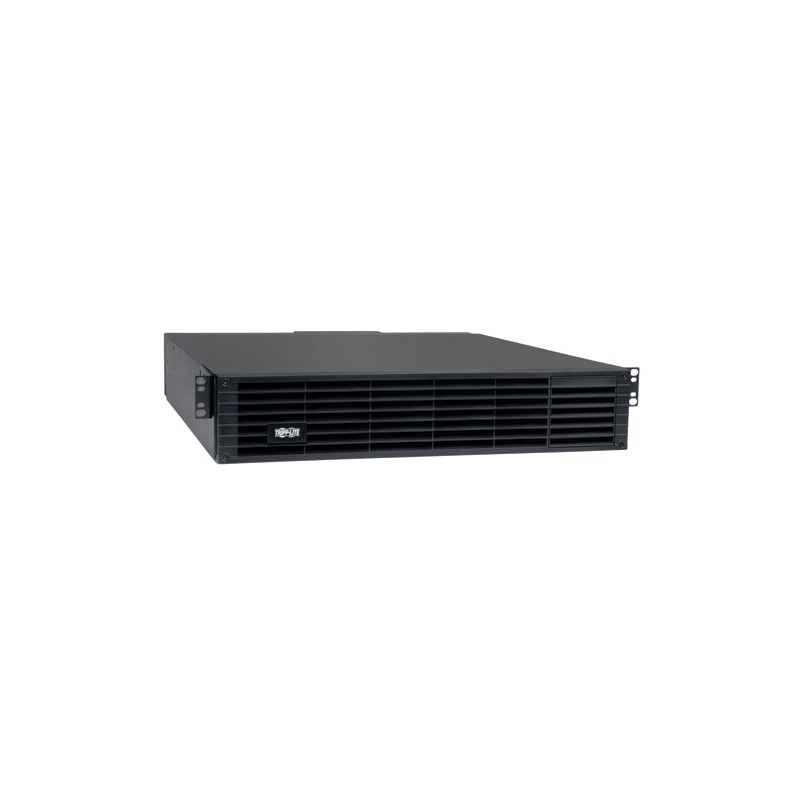

Tripp Lite External 48V 2U Rack/Tower Battery Pack for select UPS Systems (BP48V27-2US)
  • Tripp Lite External 48V 2U Rack/Tower Battery Pack for select UPS Systems (BP48V27-2US)
  • Tripp Lite External 48V 2U Rack/Tower Battery Pack for select UPS Systems (BP48V27-2US)
  • Tripp Lite External 48V 2U Rack/Tower Battery Pack for select UPS Systems (BP48V27-2US)
  • Tripp Lite External 48V 2U Rack/Tower Battery Pack for select UPS Systems (BP48V27-2US)
  • Tripp Lite External 48V 2U Rack/Tower Battery Pack for select UPS Systems (BP48V27-2US)
  • Tripp Lite External 48V 2U Rack/Tower Battery Pack for select UPS Systems (BP48V27-2US)
  • Tripp Lite External 48V 2U Rack/Tower Battery Pack for select UPS Systems (BP48V27-2US)
BP48V27-2US rackmount external battery pack offers extended battery runtime when used in conjunction with expandable 48V Tripp Lite rackmount UPS systems. Includes heavy gauge cabling with high current DC connector for safe, simple installation. Included daisychain connector enables the connection of additional compatible 48V external battery packs to the host UPS. Included mounting accessories support 2U rackmount installation in 4 post racks. Options for 2-point front-rail mounting, 2 post center-mounting and wallmount installation available.



Compatible with these UPS Systems - SM2200RMDVTAA, SMART1500CRMXL, SMART2200CRMXL, SMART2200RMXL2U, SMART2200RMXL2UP, SMART2200RMXLN, SMART2200VSXL, SMART2600RM2U, SMART3000CRMXL, SMART3000RM2U, SMART3000RM2UN, SMART3000RMXL2U, SMART3000RMXLN, SMART3000VS, SMART5000RT3U, SMART5000XFMRXL, SMARTINT3000VS, SMX2200XLRT2U, SMX3000XLRT2UA, SMX5000XLRT3U, SU1500RTXL2UA, SU1500RTXLCD2U, SU2200RTXL2UA, SU2200RTXLCD2U and other Tripp Lite UPS systems that specify the use of this battery pack.



● Offers extended-run UPS operation when used in conjunction with compatible 48V DC Tripp Lite UPS systems

● Includes heavy gauge cabling with high current DC connectors for simple installation

● Daisychain connector enables the connection of additional compatible 48V external battery packs to the host UPS

● Included mounting brackets support rackmount installation in 4 post racks using only 2 rack spaces (2U)

● UPDHDEARKIT option supports 2 point front-rail rackmount installation without rear supports

● 2POSTRMKITWM option supports balanced 2 point center-mounting in 2 post equipment racks

● 2POSTRMKITWM option also enables wallmount installation



● Extends the runtime of compatible 48V Tripp Lite UPS Systems

● Included daisychain connector supports the addition of multiple compatible external battery packs

● Supports 2U rackmount installation; 4 post installation accessories included

● Options for 2 post rackmount and wallmount installation available



Package Includes



● BP48V27-2US external battery pack with attached DC cabling

● 4 post compatible mounting hardware

● Owner's manual
Battery life6 year(s)
Battery voltage48 V
Colour of productBlack
Compatible productsSM2200RMDVTAA, SMART1500CRMXL, SMART2200CRMXL, SMART2200RMXL2U, SMART2200RMXL2UP, SMART2200RMXLN, SMART2200VSXL, SMART2600RM2U, SMART3000CRMXL, SMART3000RM2U, SMART3000RM2UN, SMART3000RMXL2U, SMART3000RMXLN, SMART3000VS, SMART5000RT3U, SMART5000XFMRXL, SM
Number of batteries included1
Package depth721 mm
Package height254 mm
Package weight56500 g
Package width671 mm
Weight40000 g

BP48V27-2US.pdf

Tripp Lite External 48V 2U Rack/Tower Battery Pack for select UPS Systems (BP48V27-2US) Data Sheet

Download (484.51k)
