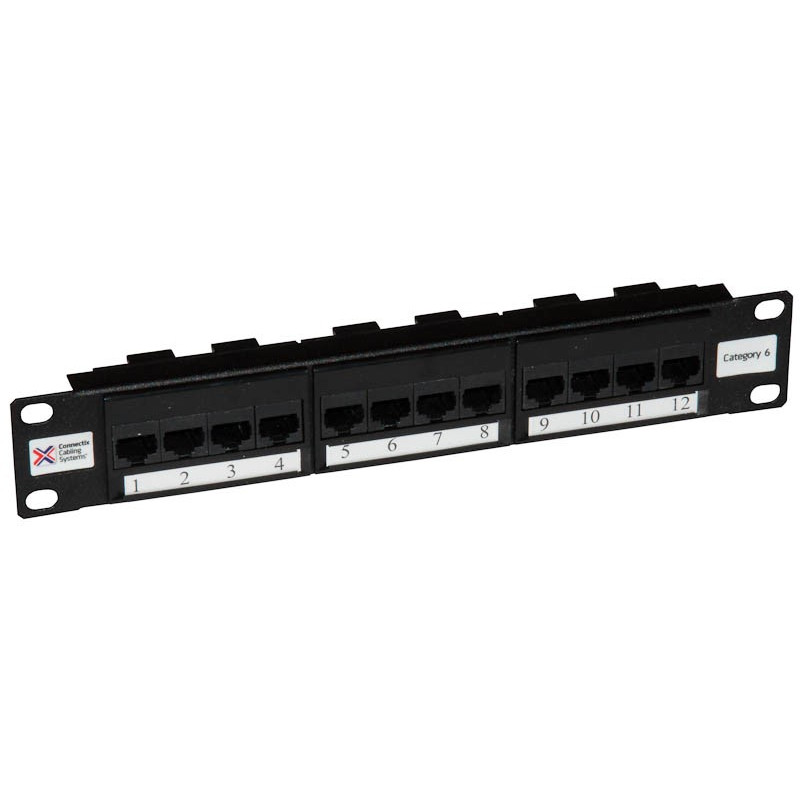

12 Port Cat6 10" UTP Patch Panel

The Home Patch Panel should be used to terminate the cabling from each of the RJ45 outlets around the home, enabling different services to be routed to any outlet.

The Elite Panels provide exceptional performance for high speed LANs including Gigabit Ethernet applications in an easy to use format. The 12 way panels consist of industry standard IDC connections, high quality RJ45 jacks, and they utilise the specially designed individually labelled cable saddle to facilitate easy installation and cable management. The rear of the panel features hook and loop cable retainers at either end for bundling cables, whilst on the front of the panel each RJ45 port is numbered with a removable identification label protected by an acetate strip.

Features:

  • Designed to fit into the Connectix SoHo Cabinet
  • Allows phone or data to be routed around the home
  • Makes alterations simple as requirements change
  • Supports high speed networks including Gigabit Ethernet
Depth35mm
Height44mm (1u)
Ports quantity12 Port
ShieldedNo
SpecificationCat6
TerminationKrone Style IDC PunchDown
U Height1u
Width260mm (10")

Darren G - 03/02/2022

Quality product
