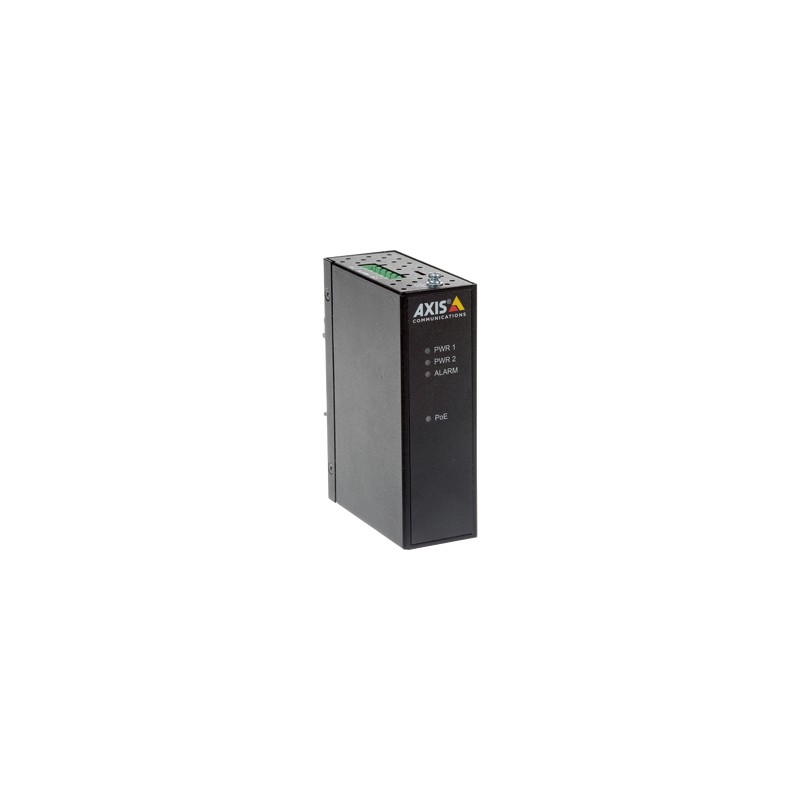

AXIS T8144 60 W Industrial Midspan is an industrial grade 1-port midspan offering an easy, fast and cost-effective solution for powering network products. With a wide operating temperature, from -40 °C to 75 °C (-40 °F to 167 °F), AXIS T8144 is robust in harsh environments. A typical configuration would be to enable PoE to a non-PoE based system (switch, 3G/4G router, or wi-fi access point) creating a compact and effective solution.
AXIS T8144 is ideal for mounting in cabinets or on DIN rail, has dual DC inputs for power redundancy and supports all PoE devices.
AXIS T8144 is ideal for mounting in cabinets or on DIN rail, has dual DC inputs for power redundancy and supports all PoE devices.
| AC adapter output voltage | 55 V |
| Colour of product | Black |
| DC-in jack | Y |
| Dimensions (WxDxH) | 78 x 36 x 111 mm |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Input voltage | 20 - 60 V |
| LED indicators | Alarm,PoE,Power |
| Number of products included | 1 pc(s) |
| Operating altitude | -40 - 185 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 167 °F |
| Output power | 60 W |
| Power consumption (max) | 72 W |
| Power over Ethernet (PoE) | Yes |
| Quick installation guide | Y |
| Rack mounting | Yes |
| Safety | EC/EN/UL 62368 - 1, UL 508 EMC EN 550 24, EN 55032 Class A, FCC P art 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, ICES - 003 Class A, EAC Environment IEC 60068 - 2 - 6, IEC 60068 - 2 - 27, IEC 60068 - 2 - 32 |
| Storage temperature (T-T) | -40 - 85 °C |
| Wall mountable | Y |
| Weight | 315 g |
Axis T8144
60W, 20 - 60V, DC, black
01154-001
Out of Stock
£275.57
£229.64 Ex VAT.
