Allied Telesis Converteon one slot media chassis, EU power adapter
  • Allied Telesis Converteon one slot media chassis, EU power adapter
  • Allied Telesis Converteon one slot media chassis, EU power adapter

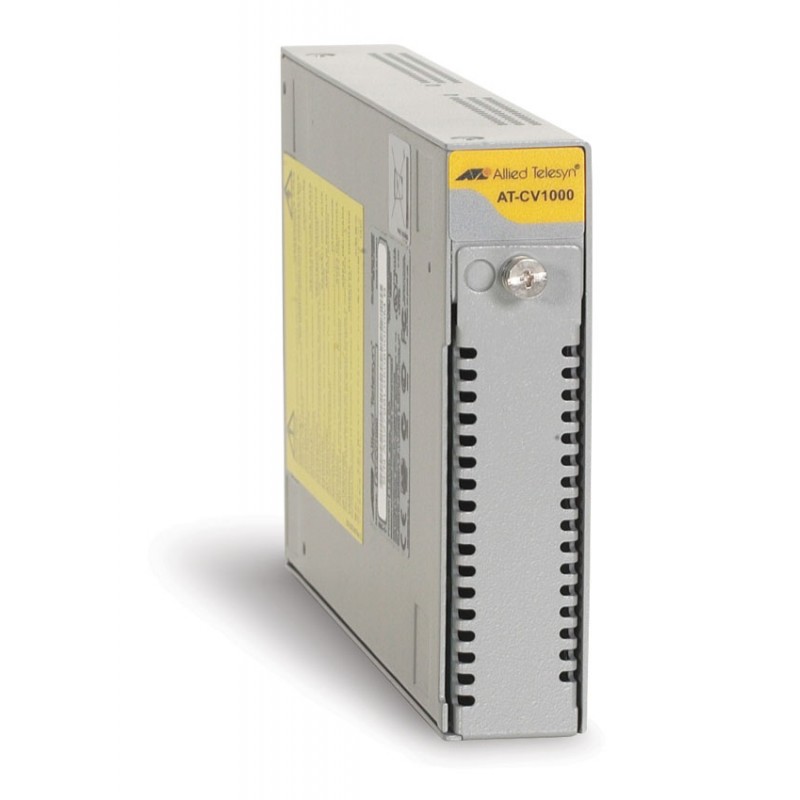

The AT-CV1000, 1 Slot, metal chassis is designed to house the range of Converteon media blades.It can be installed with one single width blade. For flexible deployment, the AT-CV1000 chassis can be installed on a desktop, by the addition of four rubber feet or it can be wall-mounted, or under desk mounted, by the addition the wall mount bracket.



* Single slot chassis for Converteon™ line card.

* Standalone or Wall mountable.

* Silent Operation.

* External Power Supply.
DC-in requirements12V@1.06A
Dimensions (WxDxH)104.8 x 177.7 x 25.4 mm
Electromagnetic emissionsFCC class A, EN55022 class A, VCCI class A, C-Tick, CE, EN55024
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 90 %
Operating temperature (T-T)0 - 40 °C
Power requirements100-240VAC@50/60Hz
Rack mountingYes
SafetyUL60950-1 (cULUS), EN60950-1 (TUV)
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-25 - 70 °C
Weight470 g

AT-CV1000-20.pdf

Allied Telesis Converteon™ one slot media chassis, EU power adapter Data Sheet

Download (60.8k)
