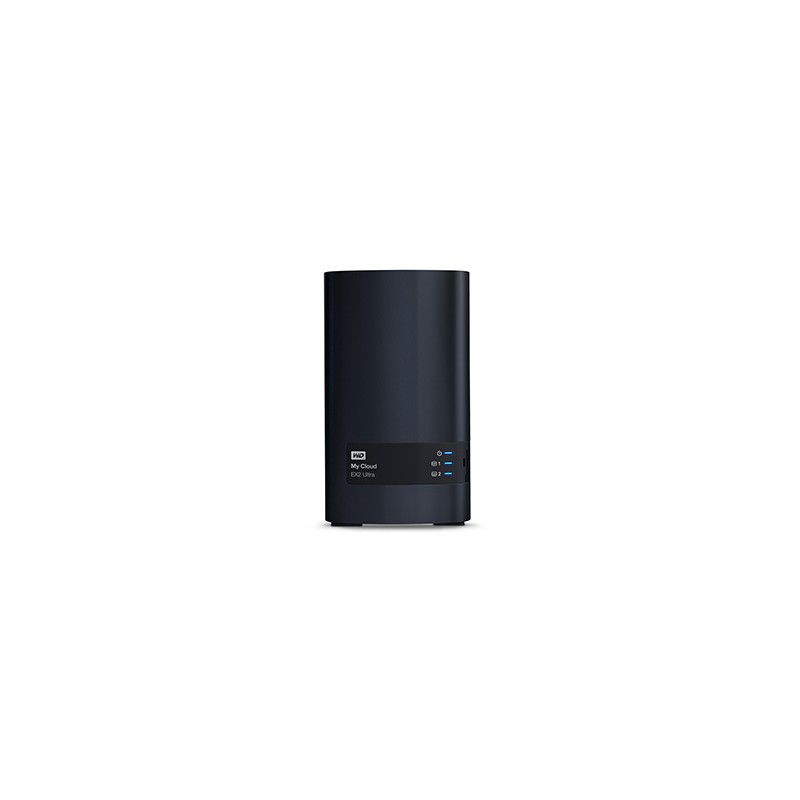

Western Digital My Cloud EX2 Ultra
  • Western Digital My Cloud EX2 Ultra
  • Western Digital My Cloud EX2 Ultra
  • Western Digital My Cloud EX2 Ultra
  • Western Digital My Cloud EX2 Ultra
  • Western Digital My Cloud EX2 Ultra
  • Western Digital My Cloud EX2 Ultra
  • Western Digital My Cloud EX2 Ultra
  • Western Digital My Cloud EX2 Ultra
HIGH-PERFORMANCE STORAGE TO SAVE, STREAM AND SHARE ANYWHERE



Keep your media safe in a single place on this high-performance Network Attached Storage (NAS) device, and access and stream it from anywhere with an internet connection.



Network Storage



Organize your entire media collection, photos and files in one central, network location.



Access from Anywhere



Save, access and stream your content anywhere you have an internet connection with the My Cloud mobile app or MyCloud.com web access.



Robust Data Protection



Multiple RAID and backup options to help protect all your valuable media, photos and important files.



POWERED BY MY CLOUD OS 3



WD's My Cloud OS 3 comes with a variety of tools and apps to give you complete control of your media. Create a custom folder to share your favorite content. Automatically sync your data between all your computers, so you know your content is always up-to-date. And easily transfer content between your NAS and a supported cloud service like Dropbox, OneDrive, or Google Drive.



Sync Your Content



With WD Sync, you can automatically synchronize your media and files across your computers and your My Cloud device, so you can be confident your content is always up to date and accessible with all your devices.



Auto Backup For All Your Computers



With WD SmartWare Pro backup software, you can customize when and where the content on all the PCs on your network is saved, while Mac users have full access to Apple Time Machine for personalized backup. You can even automatically back up your data to a separate My Cloud NAS device, or any supported cloud service..



Third-party App Support



My Cloud EX2 Ultra supports a full suite of popular applications for a personalized experience. Using apps like Plex, Milestone Arcus Surveillance, Dropbox, WordPress and more, you can customize your NAS for your own specific needs.



Featuring Ultra-reliable WD Red NAS Drives



My Cloud EX2 Ultra comes pre-configured with WD Red hard drives, specifically built for NAS systems to provide improved performance within 24x7 environments. The My Cloud EX2 Ultra is also available in a diskless version, so you can create a custom NAS with compatible hard drives.



VOLUME ENCRYPTION



Equipped with 256 AES volume encryption, it helps to secure your stored files across your entire network. Whether you’re using a PC or a Mac, your content is protected.



MULTIPLE RAID OPTIONS



With the RAID settings of the My Cloud EX2 Ultra, you can customize your system with the configuration that’s best for you. Use RAID 0 for enhanced performance, RAID 1 for mirrored data protection, or a JBOD / spanning structure for non-RAID configurations.
AC input frequency50/60 Hz
AC input voltage100-240 V
Backup featuresCloud
Backup functionYes
Cable lock slotYes
Cables includedLAN (RJ-45)
Colour of productBlack
Depth157 mm
Device classHome & Home Office
DHCP clientYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
External power adapterYes
Height165 mm
Hot-swap drive baysYes
Installed storage drive typeHDD
iSCSI supportYes
Jumbo frames supportYes
LED indicatorsStatus
Link aggregationYes
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Number of storage drives installed2
Number of storage drives supported2
Number of users800 user(s)
Operating temperature (T-T)0 - 35 °C
Power supply locationExternal
Processor cores2
Processor familyMarvell
Processor frequency1.3 GHz
Processor modelArmada 385
Quick installation guideYes
RAID levels0,1,JBOD
RAID supportYes
Security algorithms256-bit AES
Storage drive capacity8000 GB
Storage drive size2.5/3.5 "
Storage drives installedYes
Storage temperature (T-T)-40 - 70 °C
Supported file systemsFAT,FAT32,HFS,NTFS,ext2,ext3,ext4
Supported storage drive typesHDD
Total installed storage capacity16000 GB
TypeNAS
Wake-on-LAN readyYes
Wi-FiNo
Width99 mm
Windows operating systems supportedWindows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64
USB 3.0 (3.1 Gen 1) Type-A ports quantity2
Digital Living Network Alliance (DLNA) certifiedYes
RAM capacity1 GB
RAM typeDDR3

WDBVBZ0160JCH-EESN.pdf

Western Digital My Cloud EX2 Ultra Data Sheet

Download (1.29M)
