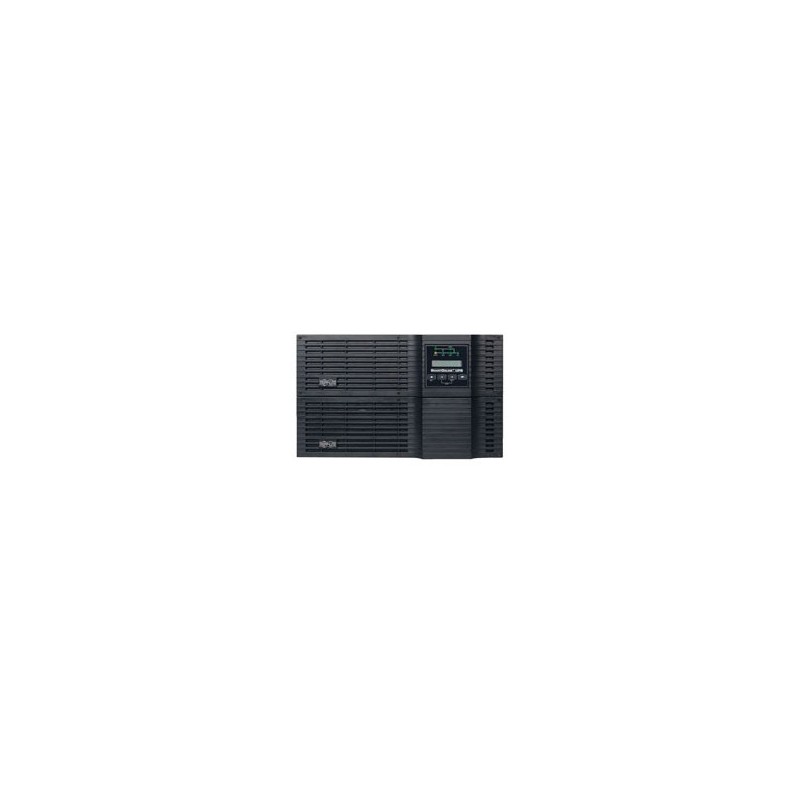

Tripp-Lite SmartOnline Expandable UPS System
Tripp Lite SU8000RT3UG 8000VA / 8kVA / 7200 watt online, double-conversion UPS system offers complete power protection for critical network applications. This system delivers online, double-conversion UPS protection with zero transfer time, suitable for advanced networking applications. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included detachable PDU with manual bypass switch enables hot-swappable replacement of entire UPS power module with no interruption to connected equipment. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.

● Tripp Lite SU8000RT3UG 8kVA / 8000VA / 7200 watt on-line, double-conversion UPS system in 6U total rack/tower configuration (3U UPS power module and 3U external battery pack)

● Detachable PDU with manual bypass switch enables hot-swappable UPS power module replacement with no interruption in output power to connected networking equipment

● Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions

● Hardwire input; 6 C19 outlets

● Maximum installed rack depth of only 32.5 in. / 82.6cm inches

● Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise

● Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types

● Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal during brownouts as low as 100V and overvoltages as high as 300V

● Supports 50/60Hz operation for worldwide frequency compatibility

● Expandable runtime is supported with optional BP240V10RT3U; BP240V557C-1PH; BP240V787C-1PH external battery packs

● Intelligent battery management system with temperature-compensated charging extends battery life

● Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)

● Highly efficient operation in optional economy mode significantly reduces BTU heat output and operating energy costs

● Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement

● USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert

● HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X

● Includes slot for network management card options

● Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD

● Optional RELAYIOMINI interface module offers three configurable hard contact closure outputs for custom event notification (requires removal of USB interface module)

● Supports Emergency Power Off (EPO) via built-in interface

● Included rail kit supports 6U 19 inch rackmount installation in 4 post racks

● Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks

● Optional 2-9USTAND supports upright tower placement

● Front panel LEDs and LCD readout with scroll controls and password option supports visual monitoring of all major UPS functions and advanced UPS settings for charge level, nominal voltage selection, frequency conversion and other operational parameters

● LED / LCD display panel rotates for viewing in rackmount or tower configurations

● Network-grade AC surge and noise suppression

● Industrial mode option (factory preset) enables supports high current startup loads by momentarily switching to bypass mode in response to short duration overload conditions

● Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)

● External battery packs are field replaceable and hot swappable

● 8kVA / 8000VA / 7200W on-line double-conversion UPS; 0.9 power factor

● 200/208/220/230/240V 50/60Hz output; Economy mode option

● Included maintenance bypass switch enables live replacement of UPS with zero downtime

● 6U rack/tower configuration; Hot-swap power and battery modules

● USB, RS232 & EPO ports; Network management card options

● Front panel LEDs with detailed LCD monitoring and control screen

● Expandable runtime with optional external battery packs

● Hardwire input (3 wire); C19 outlets



Package Includes



● SU8000RT3UPM 3U UPS power module

● BP240V10RT3U external battery pack

● SUPDMB710IEC Detachable PDU with manual bypass switch

● Four post compatible rack rail kit (2 sets)

● USB, DB9 and EPO cables
CertificationUL1778, CSA, CE, NOM, Class A, ROHS
Colour of productBlack
Dimensions (WxDxH)444 x 826 x 131 mm
LED indicatorsYes
Nominal input voltage200/208/220/230/240 V
Operating relative humidity range0 - 95 %
Operating temperature range (T-T)0 - 40 °C
Output connections6 x C19
Output power6400 W
Output power capacity (VA)8000 VA
Package dimensions (WxDxH)851 x 584 x 1067 mm
Package weight152600 g
Serial ports quantity1
Source data-sheetIcecat.biz
Storage temperature range (T-T)-15 - 50 °C
Typical backup time at full load6 min
Typical backup time at half load15 min
Weight26000 g

Tripp Lite SmartOnline 200-240V 8kVA 7.2kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, 6U Rack/Tower, Bypass Swi

SmartOnline 200-240V 8kVA 7.2kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, 6U Rack/Tower, Bypass Switch, C19 Outlets

SU8000RT3UG

Out of Stock

£3,761.70
£3,134.75 Ex VAT.
