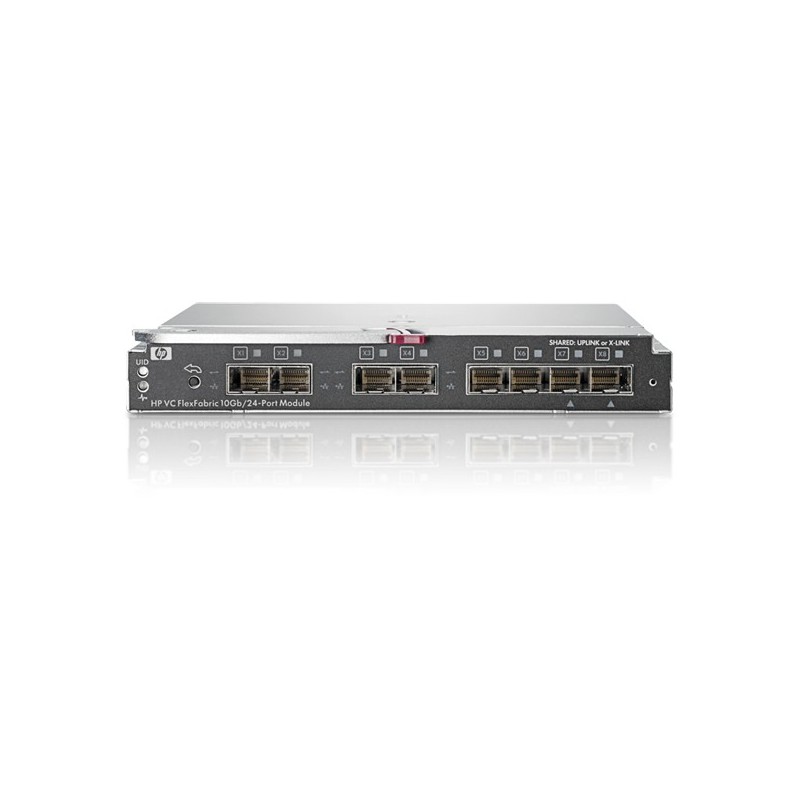

Hewlett Packard Enterprise Virtual Connect FlexFabric 10Gb/24-port

HP Virtual Connect FlexFabric 10Gb/24-port Module for c-Class BladeSystem

More details

571956-B21

Out of Stock

HP Virtual Connect FlexFabric 10Gb/24-port Modules are the simplest, most converged and flexible way to connect virtualized ... Read More

Free tester with every 5 boxes of cable

New product

£17,966.19 Inc. VAT

£14,971.82

This product is currently out of stock. We update our stock levels throughout the day so check back soon for more information.
  • More Info

  • Details

HP Virtual Connect FlexFabric 10Gb/24-port Modules are the simplest, most converged and flexible way to connect virtualized server blades to any data or storage network. VC FlexFabric modules eliminate up to 95% of network sprawl at the server edge with one device that converges traffic inside enclosures and directly connects to LANs and SANs.



Using Flex-10 technology with Fibre Channel over Ethernet and Accelerated iSCSI, these modules converge traffic over high speed 10 Gb connections to servers with HP FlexFabric Adapters. Each module provides four adjustable connections (three data and one storage or all data) to each 10 Gb server port.



Avoid the confusion of traditional and other converged network solutions by eliminating the need for multiple Ethernet and Fibre Channel switches, extension modules, cables and software licenses. Also, Virtual Connect wire-once connection management is built-in, enabling server adds, moves, and replacement in minutes instead of days.

Simplify the Server Edge with 95% Consolidation and Faster Deployment of Network Connections


• The HP Virtual Connect FlexFabric 10Gb/24-port Module cuts 95% of hardware to connect servers to networks: Only two VC FlexFabric modules connect an enclosure of HP server blades to both data and storage networks, eliminating multiple switches, cards, and cables



Flexible configuration of network and storage connection quantity and performance


• One flexible interconnect connects to any network: One device supports most common data center network protocols: Ethernet, Fibre Channel, iSCSI.



Upgrade your network with investment protection and no process changes


• 100% compatible with current networks: Seamless connection to existing industry standard data and storage networks avoids fork-lift upgrades.

Blade types supportedHP ProLiant; Integrity Servers
Dimensions (WxDxH)27.94 x 192.53 x 267.97 mm
Energy Star certifiedNo
Management platformEmbedded Virtual Connect Manager for provisioning, connection management and network troubleshooting up to 4 enclosures from one console; Simple and intuitive Graphical User Interface (GUI) and Setup Wizards; Command Line Interface supporting all function
MultimediaOptional HP 10Gb SFP+ SR, LR, and LRM modules and 10Gb SFP+ Copper cables in 0.5m, 1m, 3m, 5m, and 7m lengths
Source data-sheetIcecat.biz
Supported protocolsEthernet; Fast Ethernet; Gigabit Ethernet; SNMP 1; SNMP 2; HTTP; HTTPS; Fibre Channel; Fibre Channel over Ethernet; Data Center Bridging
EAN0884962102558
ManufacturerHP
