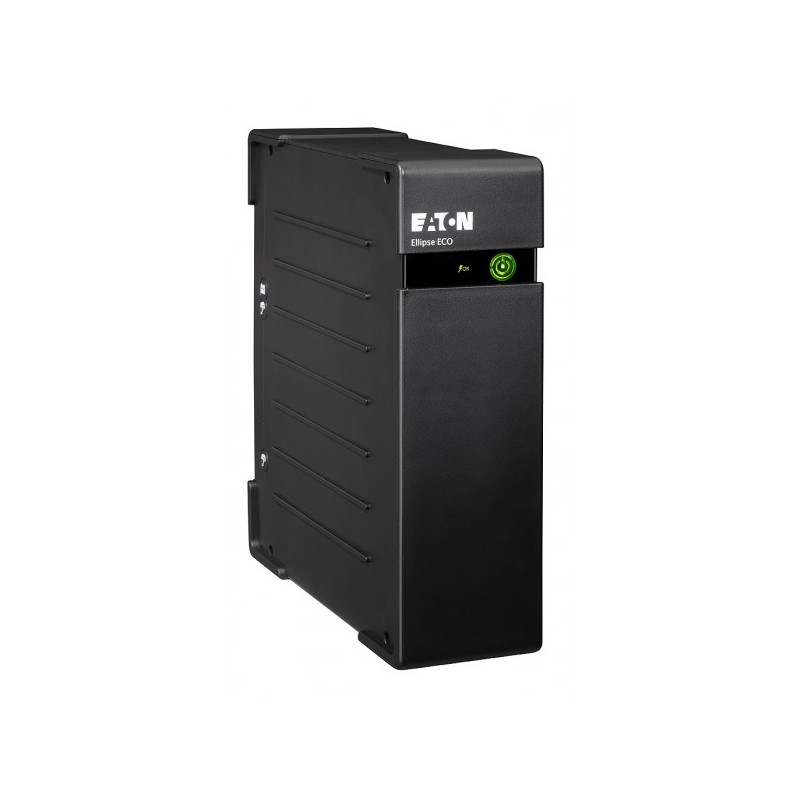

Eaton Ellipse ECO 500 IEC
The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
AC outlet typesC13 coupler
AC outlets quantity4 AC outlet(s)
Automatic battery testYes
Battery replacement alarmsAudible,LED
Battery technologySealed Lead Acid (VRLA)
Cold startYes
Colour of productBlack
Depth235 mm
Emergency Power Off (EPO)Yes
Ethernet LAN (RJ-45) ports1
Ethernet LAN (RJ-45) ports quantity1
Form factorRackmount
Height263 mm
Hot-swap batteryYes
Input connection typeIEC
Input operation voltage (max)284 V
Input operation voltage (min)161 V
LED indicatorsYes
Modem (RJ-11) ports1
Nominal input voltage230 V
Nominal output voltage220-240 V
Output operation voltage (max)240 V
Output operation voltage (min)220 V
Output power300 W
Output power capacity (VA)500 VA
Overload protectionYes
Power plugC14 coupler
Power supply input frequency50/60 Hz
Rack capacity2U
Rack mountingYes
SafetyIEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
Source data-sheetIcecat.biz
Surge protectionYes
Surge protection featuresFax,Modem,Network,Telephone
Typical backup time at half load9 min
Weight2900 g
Width81 mm
Output power capacity500 VA
Audible alarm(s)Yes
