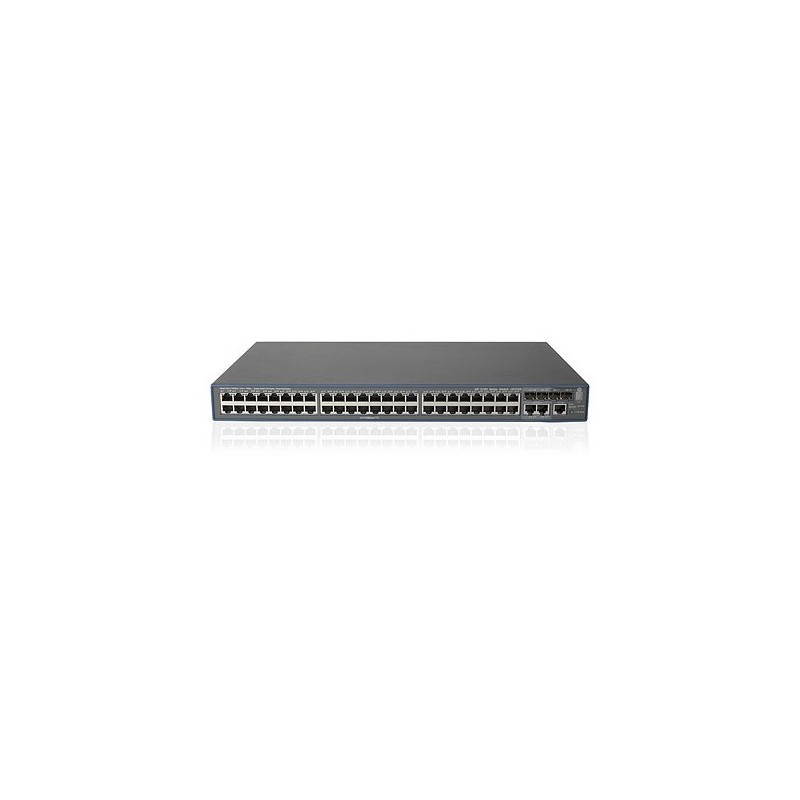

HP 3100-48 v2 Switch
The HP 3100 EI Switch Series enhance security by providing reliable fully managed Fast Ethernet Layer 2 switches ideal for the access layer of medium and large enterprises. Features include enterprise class quality of service and security features including rate limiting, QinQ, ACLs, a 24-port PoE model and improved reliability with backup redundancy.



The HP 3100 EI Switch Series can be managed with the optional HP Intelligent Management Center (IMC) Software Platform for a single view of your entire network.



Features



Reliable Fast Ethernet Access Layer Switches

- The HP 3100 EI Switch Series enhance security by providing reliable fully managed Fast Ethernet Layer 2 switches ideal for the access layer of medium and large enterprises.

- Series includes 8-, 16-, 24- and 48-port models with Gigabit Ethernet uplinks with a 24-port PoE model for support of IP phones, wireless APs and video cameras.

- Hardware-based wirespeed access control lists (ACLs) help provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation.

- External redundant power supply provides improved reliability.



Enhanced Quality of Service (QoS) and Service Control

- The HP 3100 EI Switch Series provides traffic prioritization with supported congestion actions including strict priority (SP), weighted round robin (WRR), SP+WRR and HQ+WRR queuing.

- Broadcast control cuts down on unwanted network broadcast traffic. Advanced QoS classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information and applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis.

- Multiple user authentication methods include MAC Authentication, IEEE 802.1X and Web-based authentications for improved security.

- Enhanced security features include port isolation, STP BPDU port protection and root guard. Radius/HWTACAS eases switch management security administration by using a password authentication server.



Single View of the Network

- The HP 3100 EI Switch Series can be seamlessly managed with the optional HP Intelligent Management Center (IMC) Software Platform to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100-240 V
Access Control List (ACL)Yes
Acoustic pressure emissions43.2 dB
Auto MDI/MDI-XYes
Auto-sensingYes
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Broadcast storm controlYes
Colour of productGrey
Combo SFP ports quantity2
Console portRJ-45
Depth260.1 mm
DHCP clientYes
DHCP serverYes
Dimensions (WxDxH)439.9 x 260.1 x 43.7 mm
Electromagnetic compatibilityFCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN
Flash memory128 MB
Flow control supportYes
Form factor1U
Full duplexYes
Heat dissipation140 BTU/h
Height43.7 mm
I/O ports48 RJ-45 autosensing 10/100 ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX), Duplex: half or full; 2 SFP dual-personality 10/100/1000 ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); 4 SFP fixed Giga
IGMP snoopingYes
Input frequency50 - 60 Hz
Input voltage100 - 240 V
Internal memory256 MB
Latency100 Mb Latency: < 6 µs (64-byte packets); 1000 Mb Latency: < 5 µs (64-byte packets)
Latency (1 Gbps)5 µs
Latency (10-100 Mbps)6 µs
Link aggregationYes
MAC address filteringYes
MAC address table32000 entries
Management platformIMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager
Memory and processorstorage: 256 MB SDRAM, 128 MB flash, packet buffer size: 4 MB
Memory typeSDRAM
MIB supportYes
MountingMounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)
Multicast supportYes
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Operating relative humidity range10 to 90 %
Operating temperature range (T-T)0 - 45 °C
Packet buffer memory4 MB
Port mirroringYes
Power consumption (typical)41 W
Power over Ethernet (PoE)No
Power supply includedNo
Quality of Service (QoS) supportYes
Rack mountingYes
SafetyUL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance
Size439.9 mm (17.32 ")
Spanning tree protocolYes
SSH/SSL supportYes
StackableYes
Storage relative humidity range5 to 95 %
Storage temperature range (T-T)-40 - 70 °C
Switch layerL2
Switch typeManaged
Switching capacity17.6 Gbit/s
Throughput13.1 Mpps
VLAN supportYes
Web-based managementYes
Weight3500 g
Width439.9 mm
SFP module slots quantity4
